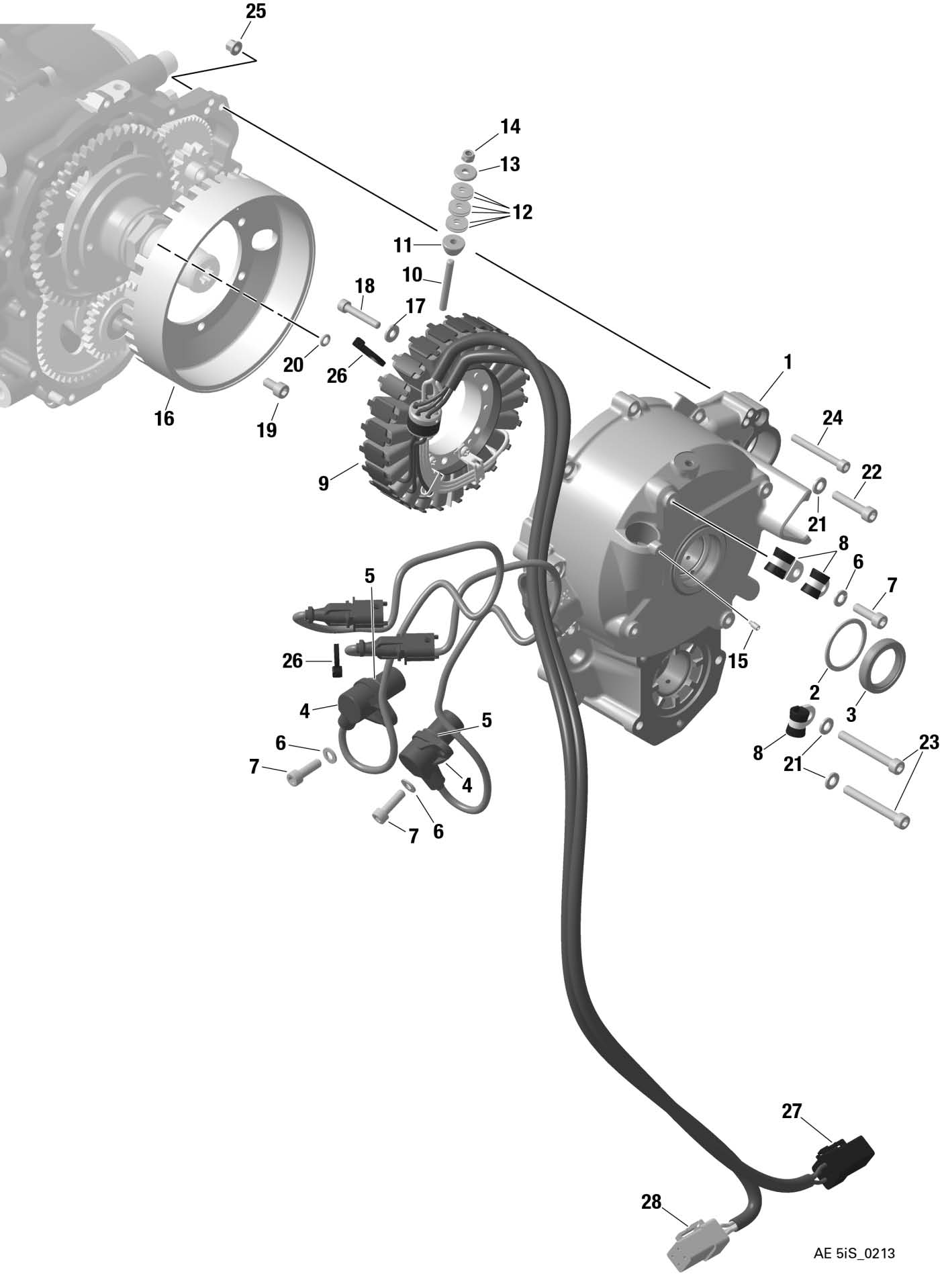

fig. 24-20-00
IGNITION HOUSING, STATOR, CRANKSHAFT POSITION SENSOR For ROTAX 915 iS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 912247 | 1 | USD | + | |
| 2 | 827220 | Washer 32/38/1,5 | 1 | USD 19.32 | + |
| 3 | 230428 | Oil Seal Gpre 28x38x7 Fkm | 1 | USD 7.11 | + |
| 4-5 | 966572 | Crankshaft Position Sensor | 2 | USD 186 | + |
| 5 | 431580 | O-ring 17,17x1,78 Fpm 70 | 2 | USD 8.03 | + |
| 1 | 945751 | Lock Washer A6 Din 128 | 3 | USD 0.23 | + |
| 7 | 241930 | Allen Screw M6x20 | 2 | USD 0.63 | + |
| 8 | 853412 | Cable Clamp #8 | 3 | USD 6.26 | + |
| 9 | 685063 | 1 | USD | + | |
| 10 | 840792 | Stud M5x44 | 1 | USD 41.31 | + |
| 11 | 947510 | Distance Sleeve | 1 | USD 36.73 | + |
| 12 | 938080 | Disk Spring 15x5,2x0,7 | 6 | USD 1.96 | + |
| 13 | 827240 | Washer 5,1/15,5/2,5 | 1 | USD 28.54 | + |
| 14 | 842033 | Lock Nut M5 | 1 | USD 0.39 | + |
| 15 | 840820 | Slotted Spring Pin 2.5x10 | 1 | USD 0.33 | + |
| 16 | 685072 | 1 | USD | + | |
| 17 | 827800 | Washer A 5,5 | 6 | USD 0.45 | + |
| 18 | 940881 | Allen Screw M5x30 | 6 | USD 0.63 | + |
| 19 | 840036 | Allen Screw M6x12 Din 912 | 6 | USD 1.96 | + |
| 20 | xxx | 1 | USD | + | |
| 21 | 827961 | 827 961 Use 827 962 | 7 | USD 0.34 | + |
| 22 | 840880 | 840 880 Use 840 888 | 5 | USD 0.63 | + |
| 23 | 241761 | 241 761 Use 241 762 | 2 | USD 0.94 | + |
| 24 | 941791 | 941 791 Use 941 792 | 2 | USD 1.19 | + |
| 25 | 942311 | Hex. Nut M5 | 2 | USD 22.74 | + |
| 26 | 866714 | Tie Wrap 142x3,2 Mm | 2 | USD 0.39 | + |
