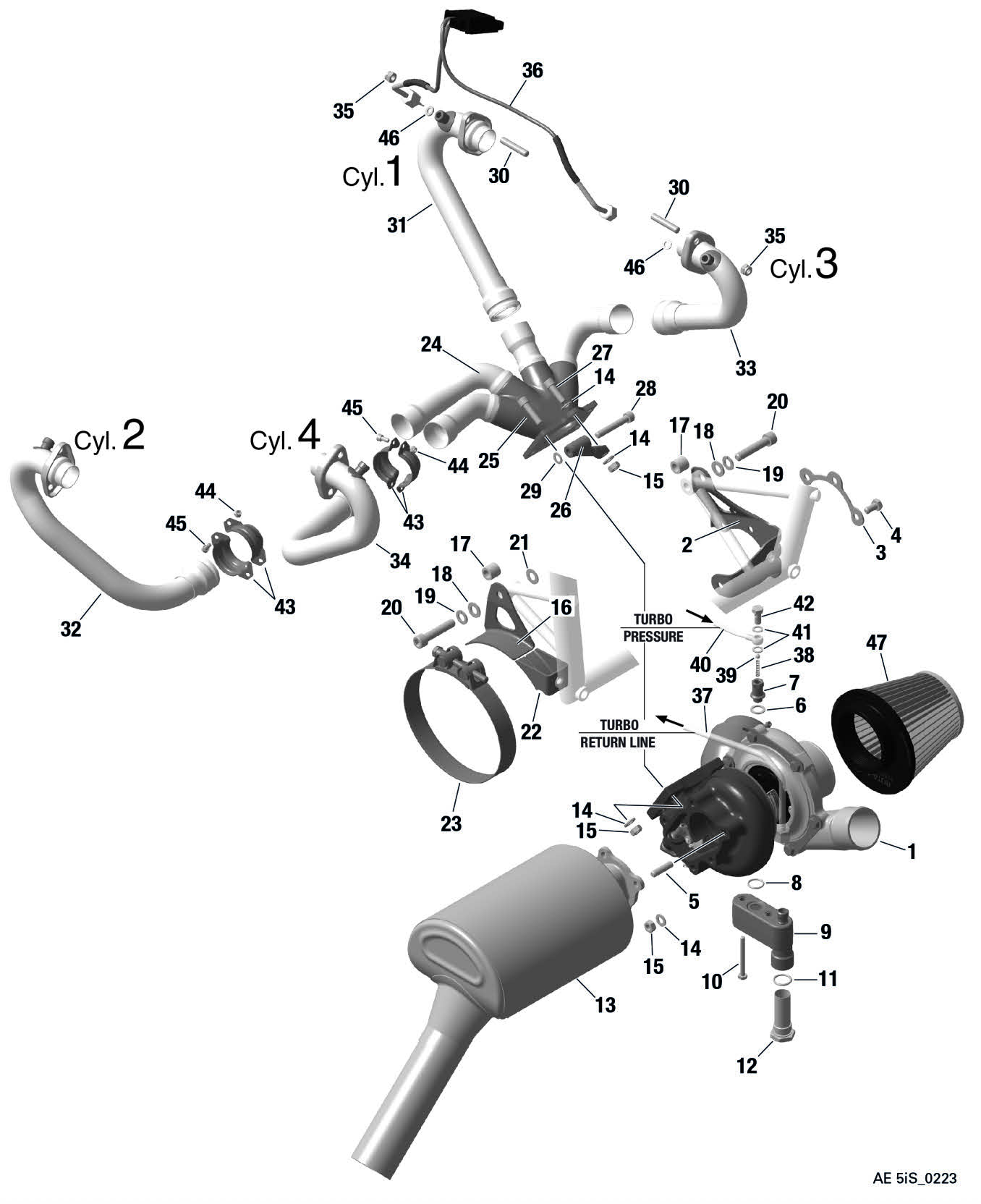

fig. 78-10-00

EXHAUST SYSTEM, EXHAUST TEMPERATURE SENSOR For ROTAX 915 iS

Click on Number to order Part

Click here to see Your List
Fig. Part Number Description Qty Unit/Price Add to Cart
1 893105 1 USD +
2 851296 1 USD +
3 851305 1 USD +
4 940583 Hex. Screw M8x16 Stainless Steel 3 USD 3.51 +
5 940173 Stud M8x19,5/13 5 USD 7.76 +
6 250640 Gasket A 12x18-cu Din 7603 1 USD 2.11 +
7 956489 1 USD +
8 430225 O-ring 15,9-2,3 1 USD 9.58 +
9 656770 Oil Sump Assy 1 USD 212.65 +
10 640601 Hex. Screw Iso 4024 - M6x55 - 8.8 2 USD 9.02 +
11 250055 O-ring Din 3771-18x2,5-n, Fpm 75 1 USD 1.96 +
12 640860 Plug Screw Assy M22 X 1.5 1 USD 72.11 +
13 979475 Muffler Assy. 1 USD 1641.36 +
14 250313 Washer 8,4 Stainless Steel 11 USD 1.35 +
15 242203 Hex.nut M8 Stainless Steel 9 USD 1.86 +
16 851680 1 USD +
17 xxx 2 USD +
18 xxx 2 USD +
19 xxx 2 USD +
20 xxx 2 USD +
21 xxx AR USD +
22 851682 1 USD +
23 851445 1 USD +
24 979561 1 USD +
25 840993 Allen Screw M8x30 4 USD 2.6 +
26 953306 1 USD +
27 240073 Bolt M8x20 S/s 1 USD 1.77 +
28 440107 Allen Screw M8x50 Din 912 1 USD 2.19 +
29 926400 Washer 8,4/15/0,5 AR USD 3.49 +
29 926401 Washer 8,4/15/1 AR USD 3.71 +
29 926402 Washer 8,4/15/1,5 AR USD 3.97 +
30 940366 8 USD +
31 979501 1 USD +
32 979511 1 USD +
33 979521 1 USD +
34 979531 1 USD +
35 842951 8 USD +
36 866262 Temp Sensor 2 USD 803.83 +
37 xxx 1 USD +
38 239131 Compression Spring 22,0 1 USD 5.32 +
39 232440 Ball 5,556 Mm 1 USD 0.73 +
40 xxx 1 USD +
41 950141 Gasket Ring A 8x13 Din 7603 2 USD 1.39 +
42 840730 Banjo Bolt M8x1x17 1 USD 57.19 +
43 979570 Exhaust Pipe Clamp 4 USD 24.99 +
44 901442 Hex Nut Iso 7042 - M5 - A2 4 USD 0.33 +
45 240153 Allen Screw M5x10 Iso 4762-a2=70 4 USD 0.33 +
46 244213 Washer 6,4 4 USD 1.1 +
