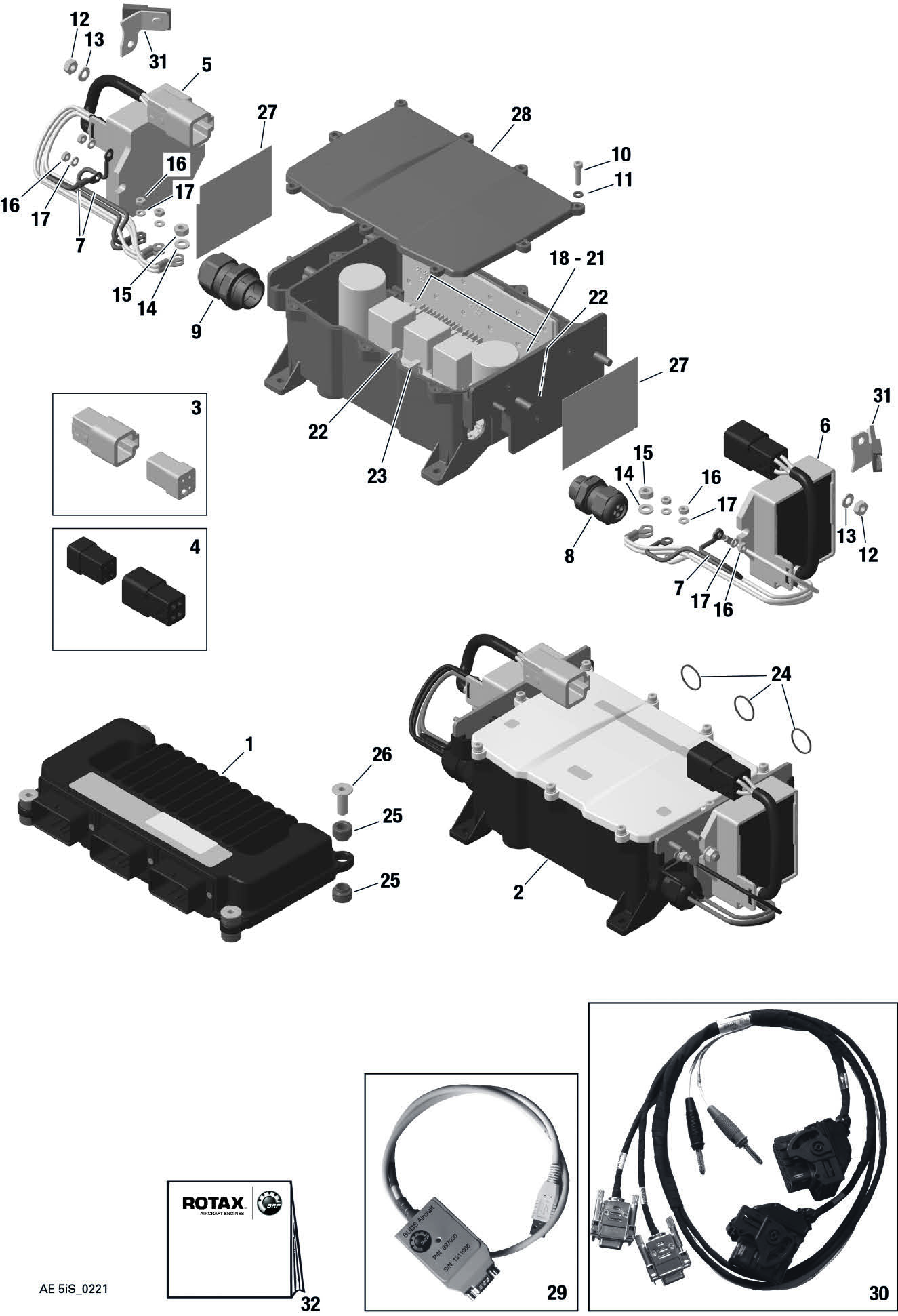

fig. 76-10-00

ENGINE CONTROL UNIT, FUSE BOX, REGULATOR For ROTAX 915 iS

Click on Number to order Part

Click here to see Your List
Fig. Part Number Description Qty Unit/Price Add to Cart
1 881254 Ecu Engine Control Unit 915is 1 USD 9372.67 +
2 881321 Fuse Box Wrapped Up 1 USD 2706.35 +
3 866422 Connector Set Grey 1a USD 107.37 +
4 866420 Connector Set Black 1a USD 122.7 +
5 864395 Regulator B - Connector Grey 1 USD 350.7 +
6 864392 Regulator A-connector Black 1 USD 357.46 +
7 866440 Mass Cable Assy. 3 USD 12.8 +
8 201370 Skintop Click 20 1 USD 14.86 +
9 201375 Skintop Click 25 1 USD 14.86 +
10 840763 Allen Screw M4x16 Iso 4762-a2-70 9 USD 47.84 +
11 827230 Plastic Washer M4 9 USD 95.68 +
12 842042 Lock Nut M6 4 USD 2.93 +
13 244213 Washer 6,4 2 USD 1.1 +
14 927573 Washer 5,3 Din 125 2 USD 0.39 +
15 842033 Lock Nut M5 2 USD 0.39 +
16 242538 Lock Nut Din 985-m4-a2 7 USD 0.39 +
17 244078 Washer 4,3 Din 125 7 USD 8.09 +
18 866450 Mini-fuse 2a 2 USD 3.77 +
19 866452 Mini-fuse 5a 11 USD 3.77 +
20 866454 Mini-fuse 7,5a 2 USD 3.77 +
21 866456 Mini-fuse 10a 7 USD 3.77 +
22 866490 Ato-fuse 20a 1 USD 3.77 +
23 866492 Ato-fuse 35a 1 USD 3.77 +
24 931110 O Ring 3 USD 14.78 +
25 201460 8 USD +
26 947540 4 USD +
27 282870 Heat Plate 2 USD 25.12 +
28 201690 Cover, Fuse Box 1 USD 153.75 +
29 xxx 1 USD +
29 xxx 1 USD +
29 xxx 1 USD +
30 xxx 1 USD +
31 951983 Connector Bracket 2 USD 49.25 +
32–37 881555 1 USD +
33 242538 Lock Nut Din 985-m4-a2 3 USD 0.39 +
34 244078 Washer 4,3 Din 125 6 USD 8.09 +
35 842042 Lock Nut M6 3 USD 2.93 +
36 244219 6 USD +
37 931110 O Ring 3 USD 14.78 +
USD +
