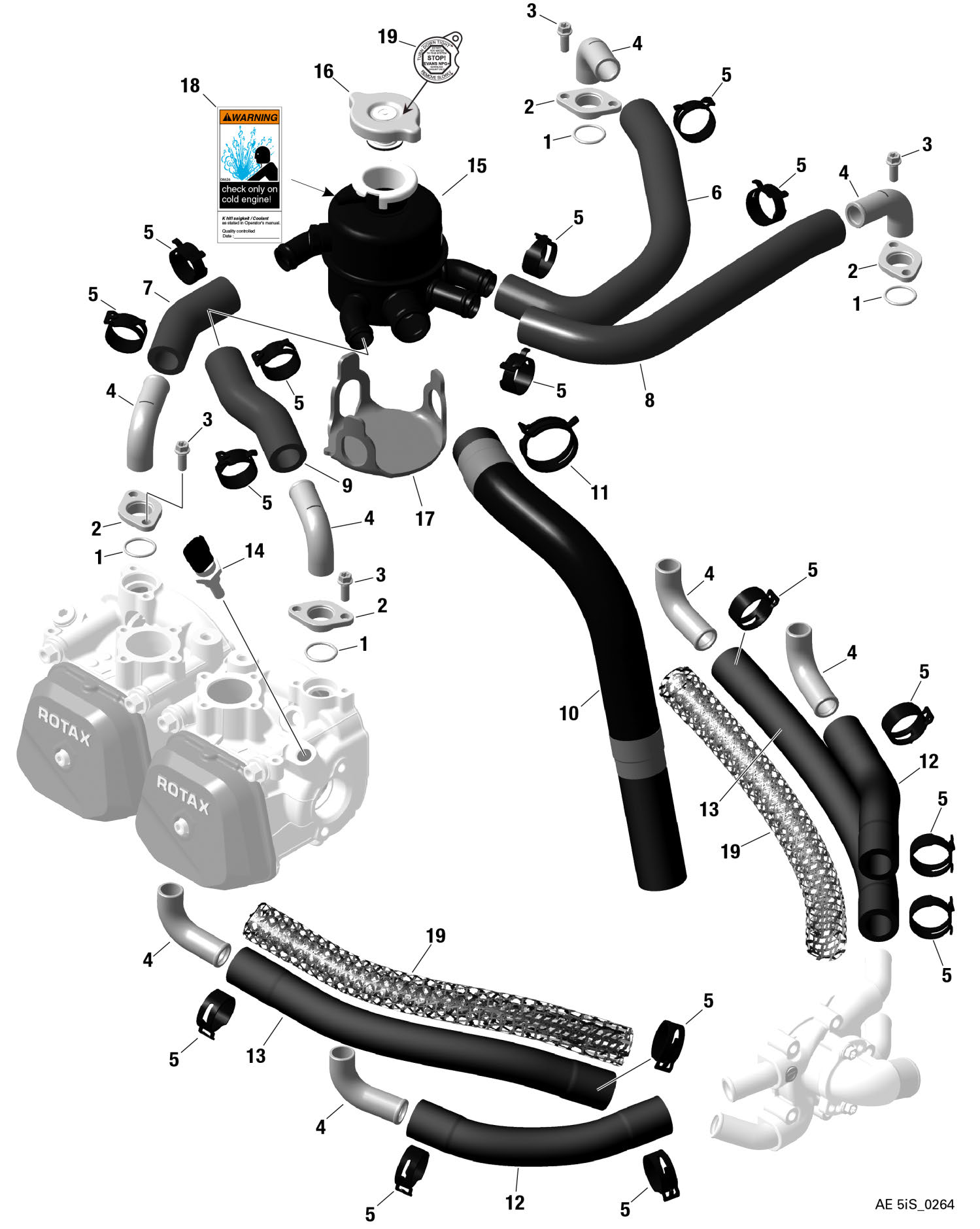

fig. 75-20-00-b

EXPANSION TANK WITH HOSES AND CONNECTIONS For ROTAX 915 iS

Click on Number to order Part

Click here to see Your List
Fig. Part Number Description Qty Unit/Price Add to Cart
1 950180 O-ring 19-2 4 USD 14.81 +
2 922303 Flange 4 USD 59.82 +
3 440162 8 USD +
4 922231 922 231 Use 922 236 8 USD 19.62 +
5 851645 Spring Type Clamp 16 USD 7.85 +
6 822422 Form Hose 1 (1a) USD 71.77 +
6 822420 Form Hose 1 1b USD 25.73 +
7 822432 Form Hose 2 (1a) USD 23.71 +
7 822430 Form Hose 2 1b USD 5.75 +
8 822442 Form Hose 3 (1a) USD 66.49 +
8 822440 Form Hose 3 1b USD 24.91 +
9 822447 Form Hose 4 (1a) USD 30.81 +
9 822445 Form Hose 4 1b USD 12.31 +
10 822450 Form Hose (1a) USD 53.6 +
10 822452 1b USD +
11 951350 Self Compensating Clamp 35 1 USD 5.31 +
12 922366 Water Tube 180mm +/- 3mm (2a) USD 39.68 +
12 922360 180 Mm Hose 2b USD 44.71 +
13 922367 Water Tube 280mm +/- 3mm (2a) USD 59.91 +
13 922362 280 Mm Hose 2b USD 64.68 +
14 965537 Temperature Sensor 1 USD 185.71 +
15-18 922664 1 USD +
16 922072 Radiator Cap W/ Gasket, 1.2 Bar 1 USD 86.58 +
17 860827 Rubber Plate 1 USD 17.14 +
18 897506 Warning Label 2 USD 6.26 +
19 860650 Protection Tube (heat Resistant) 2 USD 225.04 +
