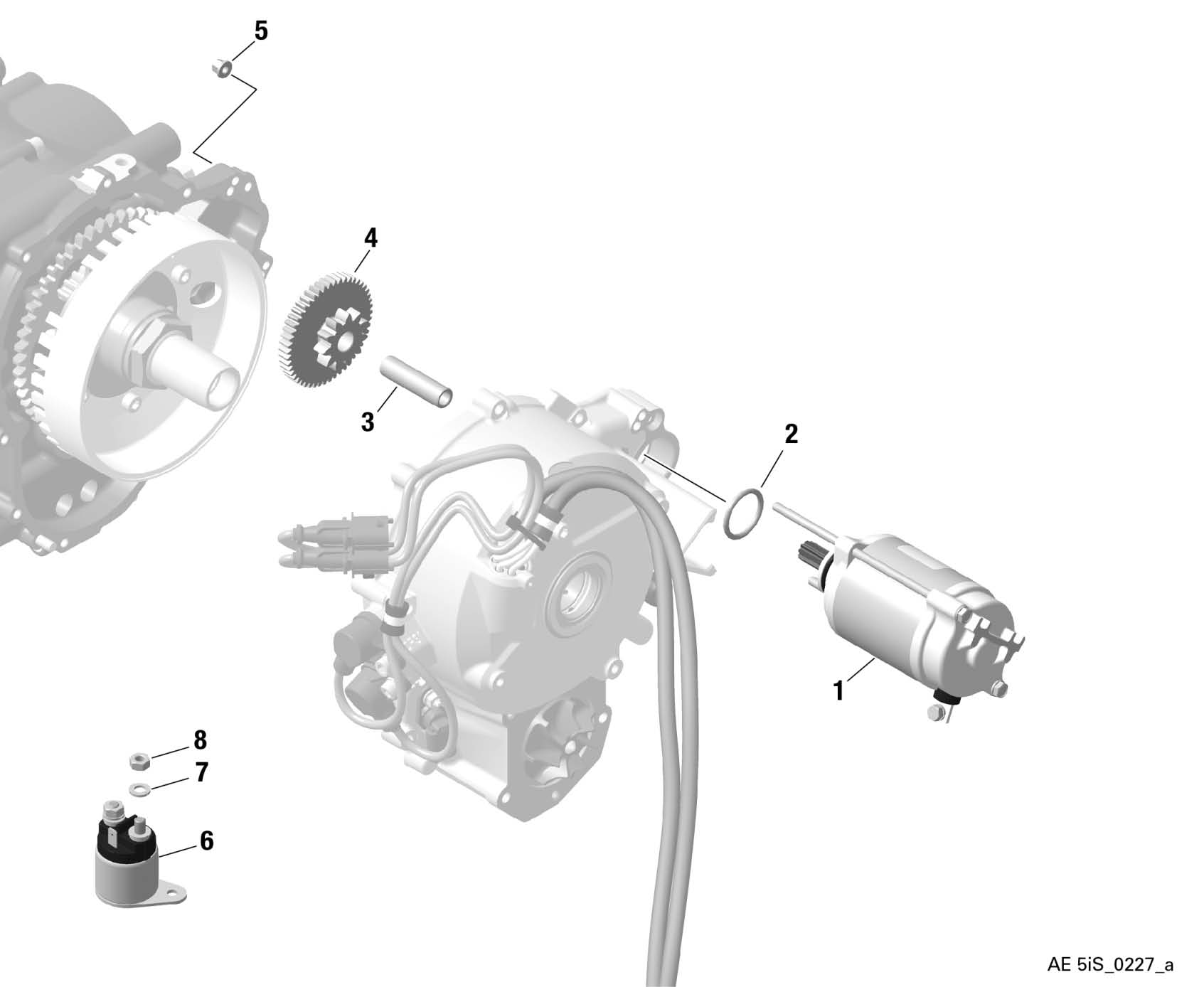

fig. 80-10-00
ELECTRIC STARTER For ROTAX 915 iS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-2 | 685667 | Electric Starter Assy. | 1 | USD 709.83 | + |
| 1-2 | 685671 | 1 | USD | + | |
| 2 | 250140 | O-ring Din 3771-24,4x3,1-n | 1 | USD 7.85 | + |
| 3 | 837102 | Idle Gear Shaft | 1 | USD 30.34 | + |
| 4 | 834156 | Idle Gear 50/11 T, | 1 | USD 194.24 | + |
| 5 | 942311 | Hex. Nut M5 | 2 | USD 22.74 | + |
| 6-8 | 992818 | Starter Relay Assy | 1 | USD 204.8 | + |
| 7 | 945831 | Lock Washer A6 Din 128 | 2 | USD 0.23 | + |
| 8 | 242211 | Hex.nut M6 | 2 | USD 0.45 | + |
