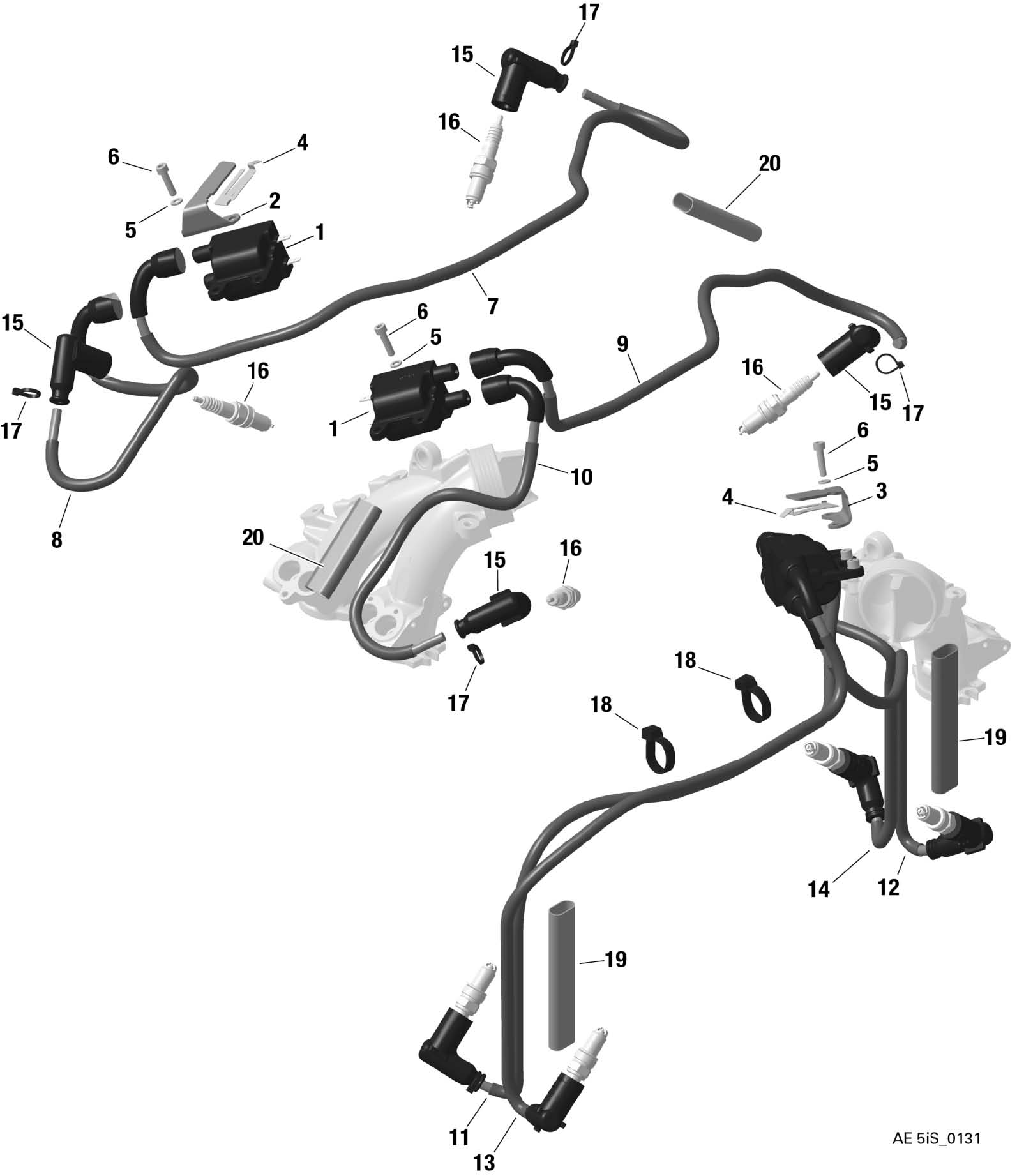

fig. 74-20-00
IGNITION COILS, IGNITION CABLE, SPARK PLUG CONNECTOR, SPARK PLUG For ROTAX 915 iS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 665613 | Double Ignition Coil | 4 | USD 342.87 | + |
| 2 | 951497 | 1 | USD | + | |
| 3 | 951496 | 1 | USD | + | |
| 4 | 251685 | 2 | USD | + | |
| 5 | 945750 | Lock Washer A5 | 8 | USD 0.23 | + |
| 6 | 441341 | Allen Screw M5x20 Din 912 | 8 | USD 0.53 | + |
| 7–14 | 665558 | Ignition Cable Assy. | 1a | USD 232.38 | + |
| 15 | 265249 | Spark Plug Connector | 8 | USD 45.03 | + |
| 16 | 297656 | Spark Plug 12 | 8 | USD 24.26 | + |
| 17 | 866718 | Tie Wrap 94x2,5 Mm | 8 | USD 0.39 | + |
| 18 | 866716 | Clamp | 2 | USD 0.73 | + |
| 19 | 860734 | Glass Fiber-silicon Sheating 120 | 2 | USD 9.19 | + |
| 20 | 860736 | 2 | USD | + |
