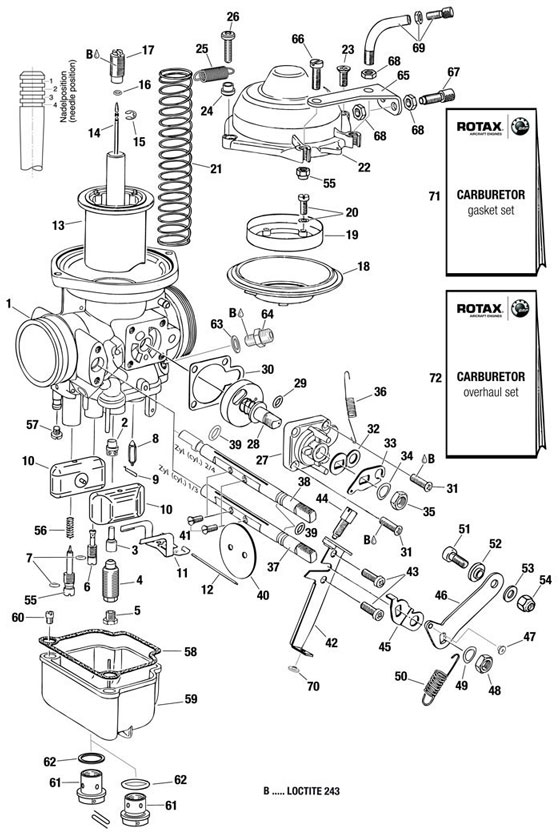

fig. 73-00-00-3
CARBURETOR - SINGLE PARTS 914 SERIES For ROTAX 914 UL
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1- | 892520 | Constant Depression Carb. Assy 1/3 | 1 | USD 1426.96 | + |
| 1- | 892525 | Constant Depression Carb. Assy 2/4 | 1 | USD 1523.61 | + |
| 2 | 961200 | Diffuser | 1 | USD 16.98 | + |
| 3 | 261607 | Needle Jet 2,72 | 1 | USD 24.31 | + |
| 4 | 963135 | Mixing Tube | 1 | USD 72.23 | + |
| 5- | 268997 | Main Jet 156 | 1g | USD 18.7 | + |
| 5- | 268996 | Main Jet 158 | 1bg | USD 18.35 | + |
| 5- | 268985 | Main Jet 160 | 1h | USD 18.35 | + |
| 5- | 268993 | Main Jet #164 | 1bh | USD 18.35 | + |
| 6 | 963143 | Idle Jet 35 | 1 | USD 43.79 | + |
| 7 | 831713 | O-ring Din 3771-3,2x1,8 | 2f | USD 4.94 | + |
| 8 | 261708 | Float Needle Valve W.viton Tip | 1f | USD 62.61 | + |
| 9 | 261710 | Float Needle Clip | 1 | USD 2.64 | + |
| 10 | 861189 | Floats Qty 2 | 1i | USD 153.97 | + |
| 11 | 861192 | Float Bracket | 1 | USD 37.96 | + |
| 12 | 929702 | Pin | 1 | USD 3.82 | + |
| 13 | 961230 | Carburetor Piston | 1 | USD 206.78 | + |
| 14 | 961215 | Jet Needle | 1 | USD 17.97 | + |
| 15 | 945786 | Circlip | 1 | USD 2.11 | + |
| 16 | 950430 | O-ring 2,5x1,5-n | 1 | USD 3.09 | + |
| 17 | 961293 | Fixation Screw | 1e | USD 21.79 | + |
| 18 | 861116 | Diaphragm | 1 | USD 99.95 | + |
| 19 | 961241 | 1 | USD | + | |
| 20 | 841210 | Combined Screw M4x12 | 4 | USD 2.17 | + |
| 21 | 938365 | Throttle Valve Spring | 1 | USD 23.22 | + |
| 22 | 961250 | Chamber Top | 1 | USD 161.04 | + |
| 23 | 841341 | Countersunk Screw M5x12 | 1 | USD 1.16 | + |
| 24 | 847910 | Distance Sleeve | 1 | USD 23.11 | + |
| 25 | 838242 | Spring | 1 | USD 16.12 | + |
| 26 | 640251 | Slotted Pan-head Screw M5x20 | 1 | USD 1.12 | + |
| 27 | 961280 | 961 280 Use 961 281 | 1 | USD 41.22 | + |
| 28- | 961273 | Choke Valve Assy., 1/3 | 1 | USD 285.46 | + |
| 28- | 961278 | Choke Valve Assy., 2/4 | 1 | USD 285.46 | + |
| 29 | 950420 | O-ring 5x1,5-n | 1 | USD 6.07 | + |
| 30 | 950030 | Gasket | 1 | USD 4.41 | + |
| 31 | 841360 | Slotted Head Screw M4x14 | 4 | USD 1.59 | + |
| 32 | 848241 | Choke Lever Inside | 1 | USD 5.6 | + |
| 33 | 848245 | Choke Lever Outside | 1 | USD 7.54 | + |
| 34 | 845035 | Spring Washer 8,3/13,6/0,4 | 2 | USD 6.77 | + |
| 35 | 942290 | Hex.nut M8x1 | 2 | USD 2.7 | + |
| 36 | 938286 | Return Spring | 1 | USD 14.61 | + |
| 37 | 963992 | Throttle Shaft "short" | 1a | USD 43.01 | + |
| 38 | 963994 | Throttle Shaft On 914 (2/4) | 1b | USD 102.61 | + |
| 39 | 950020 | O-ring 6x1,9 | 2j | USD 5.8 | + |
| 40 | 963666 | Throttle Valve | 1 | USD 16.49 | + |
| 41 | 941200 | Slotted Head Screw M3x6 | 2 | USD 1.88 | + |
| 42- | 961262 | Cable Support Assy. | 1 | USD 31.19 | + |
| 42- | 961267 | Cable Support Assy. | 1 | USD 34.46 | + |
| 43 | 241212 | 241 212 Use 240 357 | 2 | USD 0.53 | + |
| 44 | 963162 | Throttle Valve Stop Screw | 1 | USD 7.61 | + |
| 45- | 848232 | Stop Lever | 1 | USD 9.08 | + |
| 45- | 848230 | Stop Lever | 1 | USD 9.08 | + |
| 46-47 | 963026 | Throttle Valve Lever 1/3 | USD 52.38 | + | |
| 46-47 | 963021 | Throttle Valve Lever 2/4 | USD 52.38 | + | |
| 47 | 963015 | Sleeve | 1 | USD 10.1 | + |
| 48 | 942290 | Hex.nut M8x1 | 1 | USD 2.7 | + |
| 49 | 845035 | Spring Washer 8,3/13,6/0,4 | 1 | USD 6.77 | + |
| 50 | 938288 | Return Spring | 1 | USD 17.33 | + |
| 51 | 241847 | Allen Screw M5 X 12 | 1 | USD 17.97 | + |
| 52 | 847741 | Graduated Sleeve | 1 | USD 30.42 | + |
| 53 | 827801 | 1 | USD | + | |
| 54 | 842032 | 2 | USD | + | |
| 55 | 961222 | Idle Mixture Screw | 1 | USD 35.82 | + |
| 56 | 239463 | Compression Spring | 1f | USD 2.7 | + |
| 57 | 941740 | Slotted Head Screw M3,5x5 | 1 | USD 1.59 | + |
| 58 | 830721 | Gasket | 1 | USD 23.94 | + |
| 59-60 | 963237 | Float Chamber 2/4, 914 | 1 | USD 108.11 | + |
| 59-60 | 963235 | Float Chamber 1/3, 914 | 1 | USD 110.07 | + |
| 60- | 268758 | Jet 85 | 1 | USD 17.36 | + |
| 60- | 268762 | Jet 105 | 1d | USD 17.36 | + |
| 60- | 268763 | Jet 130 | 1d | USD 15.81 | + |
| 60- | 268765 | Jet 140 | 1d | USD 15.81 | + |
| 61-62 | 963281 | Attachment Screw Assy | 1f | USD 103.72 | + |
| 62 | 631771 | O-ring, 15,5x1,78-n | 1f | USD 14.28 | + |
| 63 | 950141 | Gasket Ring A 8x13 Din 7603 | 1 | USD 1.39 | + |
| 64 | 941853 | Fuel Line Connector | 1 | USD 21.01 | + |
| 65- | 851072 | Support Left | 1 | USD 51.75 | + |
| 65- | 851074 | Support Right | 1 | USD 52.68 | + |
| 66 | 240761 | Slotted Head Screw M5x16 | 1 | USD 0.63 | + |
| 67 | 241440 | Adjustment Screw M6x0,75 | 1 | USD 6.94 | + |
| 68 | 942541 | Hex. Nut M6x0,75 Hight 3 Mm | 3 | USD 1.54 | + |
| 69 | 861640 | Bent Tube Assy., | 1 | USD 46.61 | + |
| 70 | 963010 | Sleeve | 1 | USD 10.27 | + |
| 71 | 996947 | 996 947 Use 996 946 | 1k | USD 105.53 | + |
| 72 | 889558 | 1l | USD | + |
