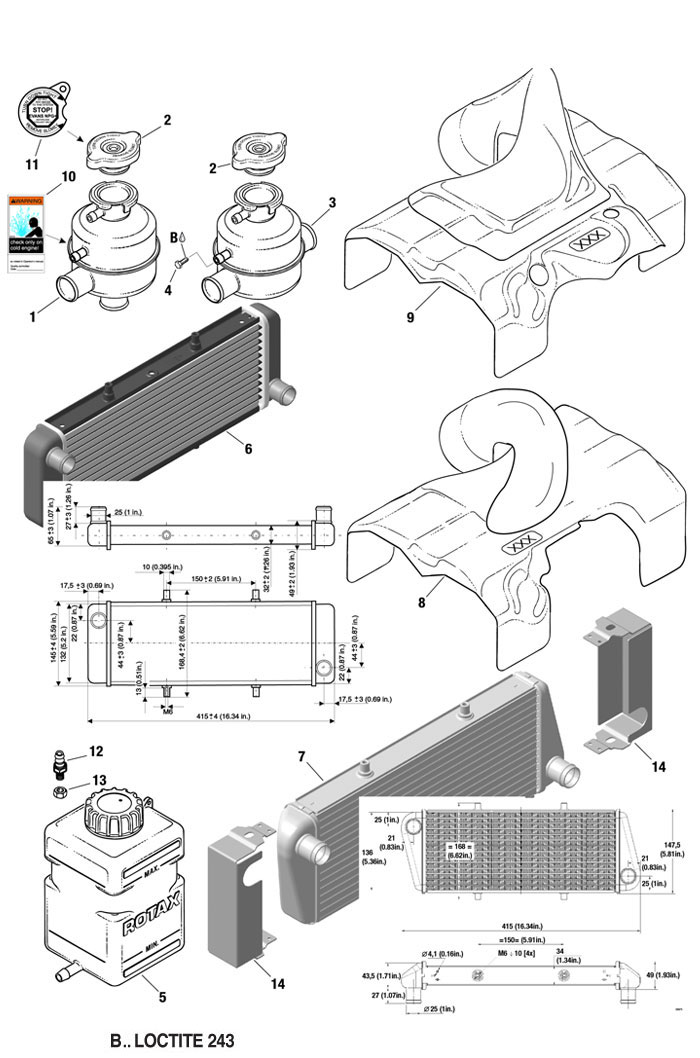

fig. 75-20-00-3
COOLING AIR BAFFLE, OVERFLOW BOTTLE WITH CAP, RADIATOR For ROTAX 912 ULS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-2 | 922312 | 1 | USD | + | |
| 2-3 | 922318 | Expansion Tank Assy. 180 Degr., | 1 | USD 151.16 | + |
| 2 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 1c | USD 86.58 | + |
| 4 | 641071 | Hex.screw Iso 4017-m6x6-8.8 | AR | USD 1.57 | + |
| 5 | 922327 | Overflow Bottle With Cap | 1d | USD 56.6 | + |
| 7 | 997084 | Radiator High Flow | 1f | USD 487.81 | + |
| 8 | 975793 | 1a | USD | + | |
| 10 | 897506 | Warning Label | 1 | USD 6.26 | + |
| 11 | 898490 | Warning Label Evans Coolant | AR | USD 0.34 | + |
| 12 | 940551 | Hose Nipple, M6 | 1d | USD 18.92 | + |
| 13 | 242031 | Hex.nut Bm6 | 1d | USD 0.94 | + |
| 14 | 881535 | Radiator Retrofit Kit | 1g | USD 87.63 | + |
| USD | + |
