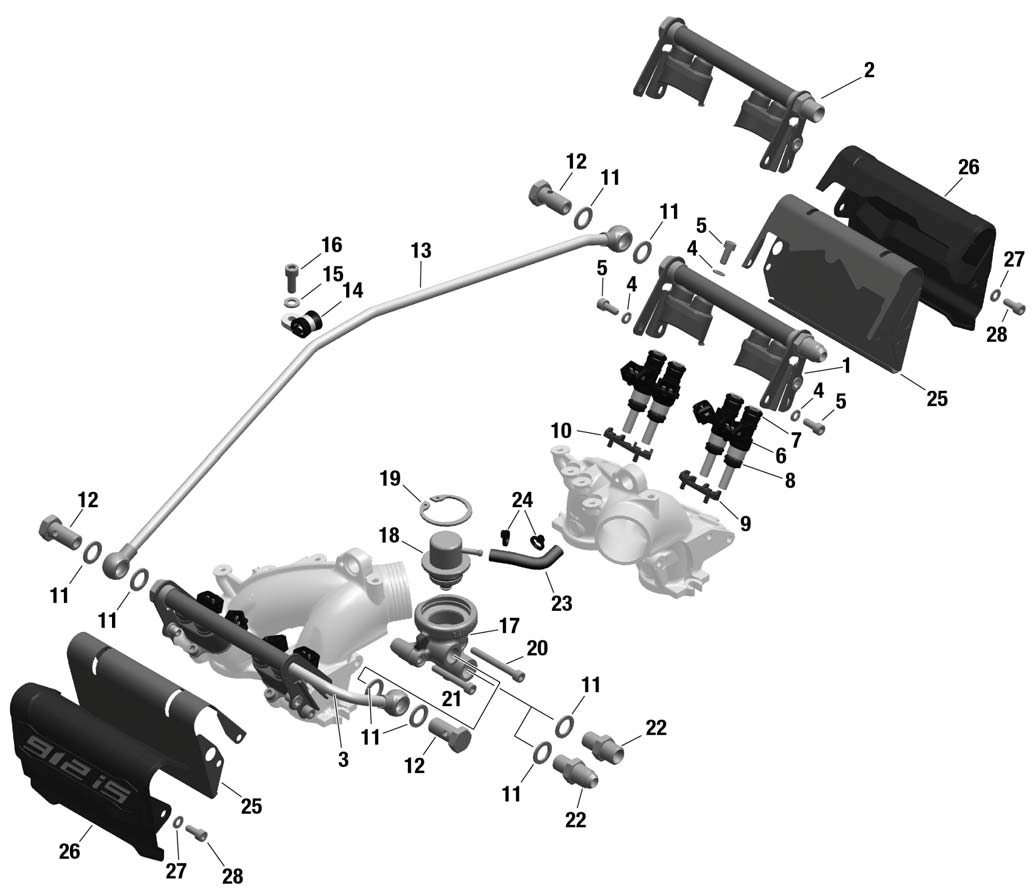

fig. 73-10-00-3
FUEL INJECTOR, FUEL RAIL, PRESSURE REGULATOR, FUEL RAIL COVER For ROTAX 912 iS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1 | 874795 | Fuel Rail Right - Unf | 1a | USD 335.19 | + |
| 2 | 874799 | Fuelrail Right-metric | 1b | USD 330.01 | + |
| 3 | 874797 | 1 | USD | + | |
| 4 | 945830 | 11 | USD | + | |
| 5 | 640542 | Allen Screw M5x12 Din 912 | 11 | USD 0.39 | + |
| 6-8 | 874780 | Fuel Injector | 8 | USD 184.92 | + |
| 7 | 831060 | O-ring 7,52x3,51 | 8 | USD 14.19 | + |
| 8 | 831050 | O-ring 8,54x3,1 Viton B70 | 8 | USD 6.72 | + |
| 9 | 860042 | Damper Left | 2 | USD 3.77 | + |
| 10 | 860040 | Damper Right | 2 | USD 3.77 | + |
| 11 | 250640 | Gasket A 12x18-cu Din 7603 | 7 | USD 2.11 | + |
| 12 | 641541 | Banjo Bolt - Din 7643 - 8 - 3 | 3 | USD 24.26 | + |
| 13 | 874802 | Fuel Hose Assy. | 1 | USD 156.77 | + |
| 14 | 853412 | Cable Clamp #8 | 1 | USD 6.26 | + |
| 15 | 827961 | 827 961 Use 827 962 | 1 | USD 0.34 | + |
| 16 | 241239 | Allen Screw M6x16 | 1 | USD 3.77 | + |
| 17 | 874770 | Pressure Regulator Housing | 1 | USD 103.18 | + |
| 18 | 889262 | Fuel Pressure Regulator Assy. | 1 | USD 340.82 | + |
| 19 | 845650 | Retaining Ring 36x1,5 | 1 | USD 1.96 | + |
| 20 | 941791 | 941 791 Use 941 792 | 1 | USD 1.19 | + |
| 21 | 841501 | Allen Screw M5x35 | 1 | USD 0.89 | + |
| 22- | 840700 | Adapter 9/16 Unf/m12x1,5 | 1 | USD 69.95 | + |
| 22- | 856821 | Adapter M14x1,5/m12x1,5 | 1 | USD 24.76 | + |
| 23 | 960631 | Tube 60 +/-3 Mm | 1 | USD 7.59 | + |
| 24 | 866718 | Tie Wrap 94x2,5 Mm | 2 | USD 0.39 | + |
| 25 | 975090 | Heat Shield | 2 | USD 8.71 | + |
| 26 | 975060 | Covering Fuelrail | 2 | USD 13.83 | + |
| 27 | 939445 | 4 | USD | + | |
| 28 | 640542 | Allen Screw M5x12 Din 912 | 4 | USD 0.39 | + |
