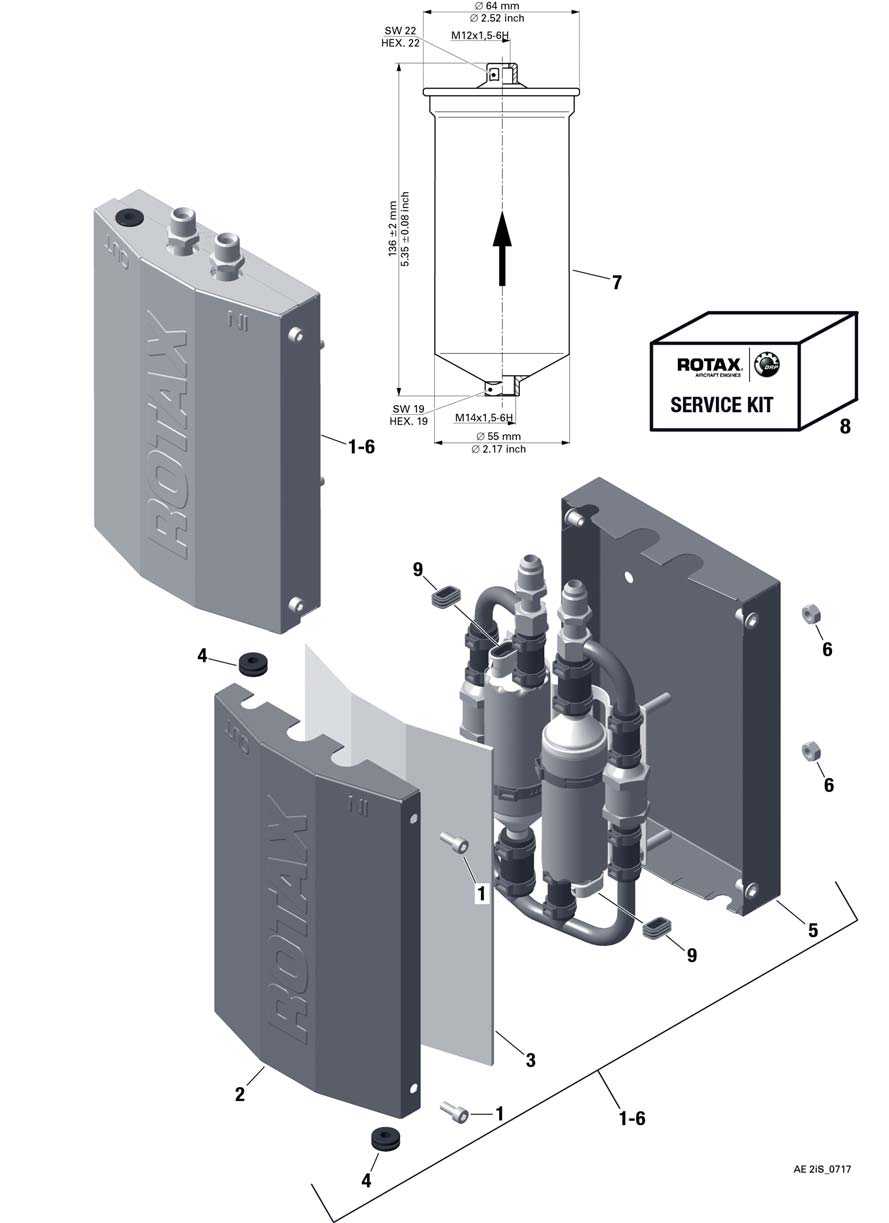

fig. 73-10-00-4
FUEL PUMP ASSY. COVER For ROTAX 912 iS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-6 | 889697 | Fuel Pump Assy - Unf | 1ad | USD 1415.66 | + |
| 1-6 | 889699 | Fuel Pump Assy. Metric | 1bd | USD 1415.66 | + |
| 1 | 640542 | Allen Screw M5x12 Din 912 | 4 | USD 0.39 | + |
| 2 | 911790 | Cover | 1 | USD 69.61 | + |
| 3 | 975055 | Heat Protection Mat | 1 | USD 14.5 | + |
| 4 | 201160 | Rubber Grommet | 2 | USD 3.77 | + |
| 5 | 911700 | Housing | 1 | USD 73.66 | + |
| 6 | 242213 | 8 | USD | + | |
| 7 | 874060 | Fuel Filter | 1c | USD 56.63 | + |
| 8 | 889537 | Fuel Pump Service Kit | 1 | USD 95.88 | + |
| 9 | 850620 | Connector Gasket | 2 | USD 8.23 | + |
