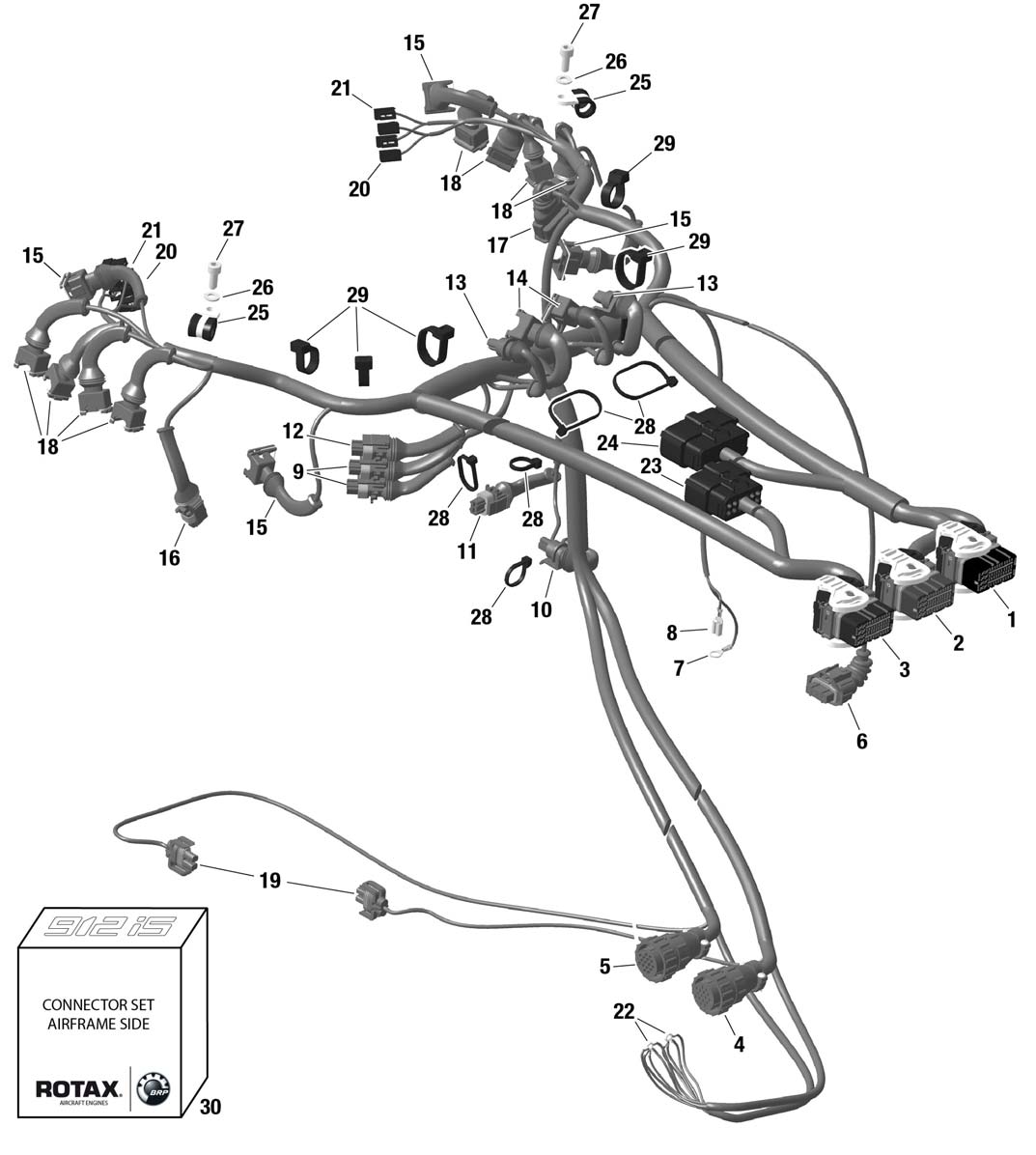

fig. 76-50-00-1
WIRING HARNESS For ROTAX 912 iS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-24 | 665571 | 665 571 Use 665 580 | 1 | USD 1545.55 | + |
| 4-5 | 881312 | Connector Set Fuse Box | 1 | USD 184.63 | + |
| 6 | 881306 | Connector Set Aapts | 1 | USD 53.84 | + |
| 7 | 964059 | Cable Shoe M6 | 1 | USD 1.35 | + |
| 8 | 864011 | Faston Connector 6,3x0,8 | 1 | USD 1.35 | + |
| 9 | 881298 | Connector Set Cps | 2 | USD 51.83 | + |
| 10 | 881302 | Connector Set | 1 | USD 43.9 | + |
| 11 | 881296 | Connector Set Cts A Ots A Knock | 1 | USD 43.03 | + |
| 14 | 881292 | Connector Set Mats | 2 | USD 38.2 | + |
| 15 | 881290 | Connector Set Egt | 4 | USD 44.15 | + |
| 17 | 881308 | Connector Set Tps | 1 | USD 36.29 | + |
| 18 | 881300 | Connector Set Inj | 8 | USD 38.2 | + |
| 19 | 881304 | Connector Set Fuel Pump | 2 | USD 138.2 | + |
| 20-21 | 881310 | Connector Set Ignition Coil | 4 | USD 27.37 | + |
| 23-24 | 881294 | Connector Set Hic A And Hic B | 1 | USD 194.98 | + |
| 25 | 251691 | 251 691 Use 251 692 | 2 | USD 3.85 | + |
| 26 | 827961 | 827 961 Use 827 962 | 2 | USD 0.34 | + |
| 27 | 840391 | Allen Screw M6x14 Din 912 | 2 | USD 1.1 | + |
| 28 | 866716 | Clamp | 6 | USD 0.73 | + |
| 29 | 866714 | Tie Wrap 142x3,2 Mm | 6 | USD 0.39 | + |
| 30 | 881240 | Hic Parts Kit | 1 | USD 358.16 | + |
