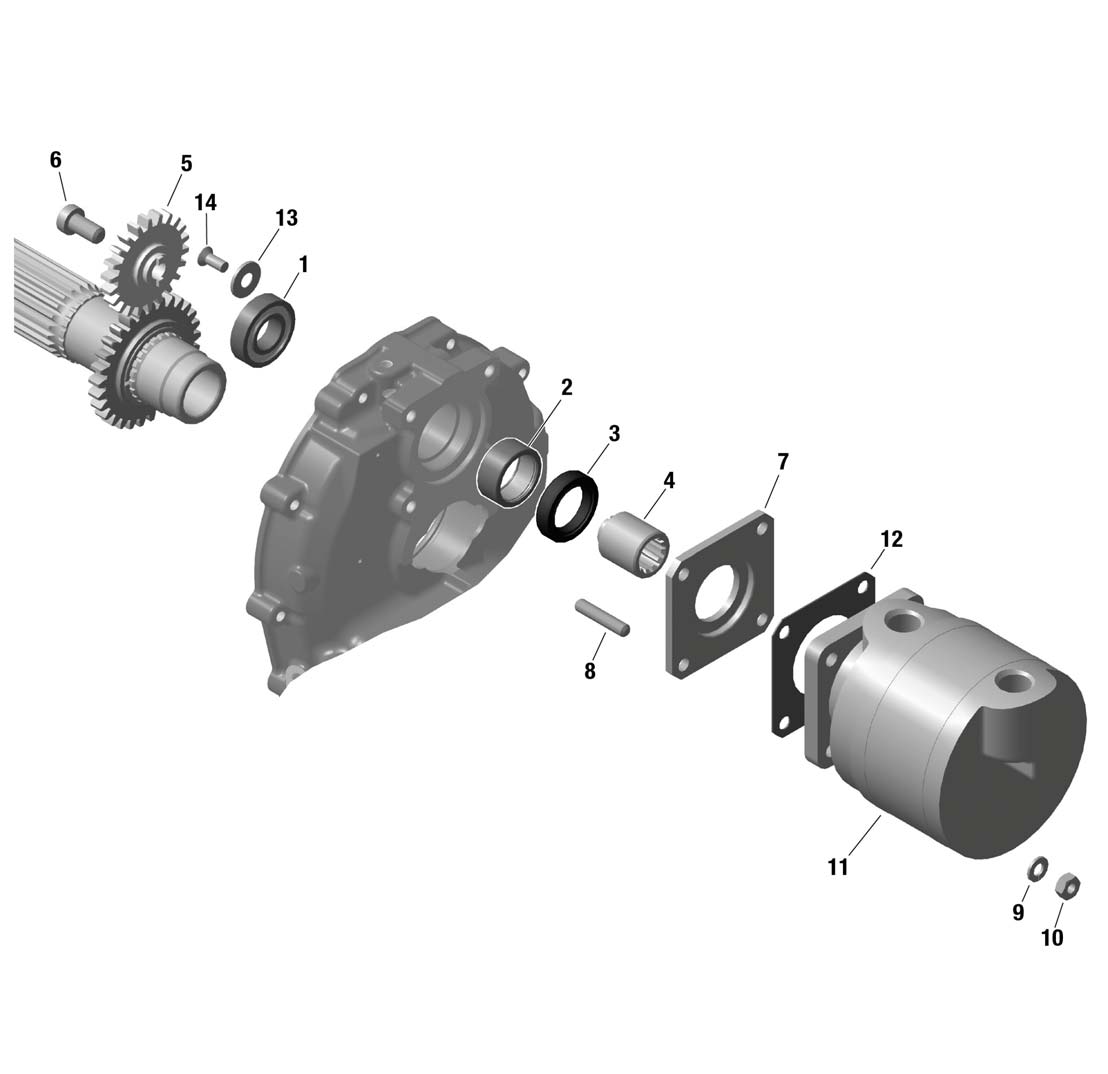

fig. 37-10-00-1
VACUUM PUMP WITH DRIVE For ROTAX 912 iS
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-8 | 881690 | Vacuum Drive Kit | 1 | USD 638.09 | + |
| 1 | 832362 | Ball Bearing 16002 | 1 | USD 44.42 | + |
| 2 | 232925 | Needle Sleeve 22x28x12 | 1 | USD 39.77 | + |
| 3 | 831265 | Oil Seal As 22x32x7 | 1 | USD 53.46 | + |
| 5 | 834245 | Vacuum Pump Gear 22 T., | 1 | USD 213.99 | + |
| 6 | 941527 | Allen Screw M8x14 | 1 | USD 27.93 | + |
| 7 | 810170 | Attachment Flange | 1 | USD 166.56 | + |
| 8 | 941080 | Stud M6x20/10 | 4 | USD 6.17 | + |
| 9 | 945751 | Lock Washer A6 Din 128 | 4 | USD 0.23 | + |
| 10 | 242211 | Hex.nut M6 | 4 | USD 0.45 | + |
