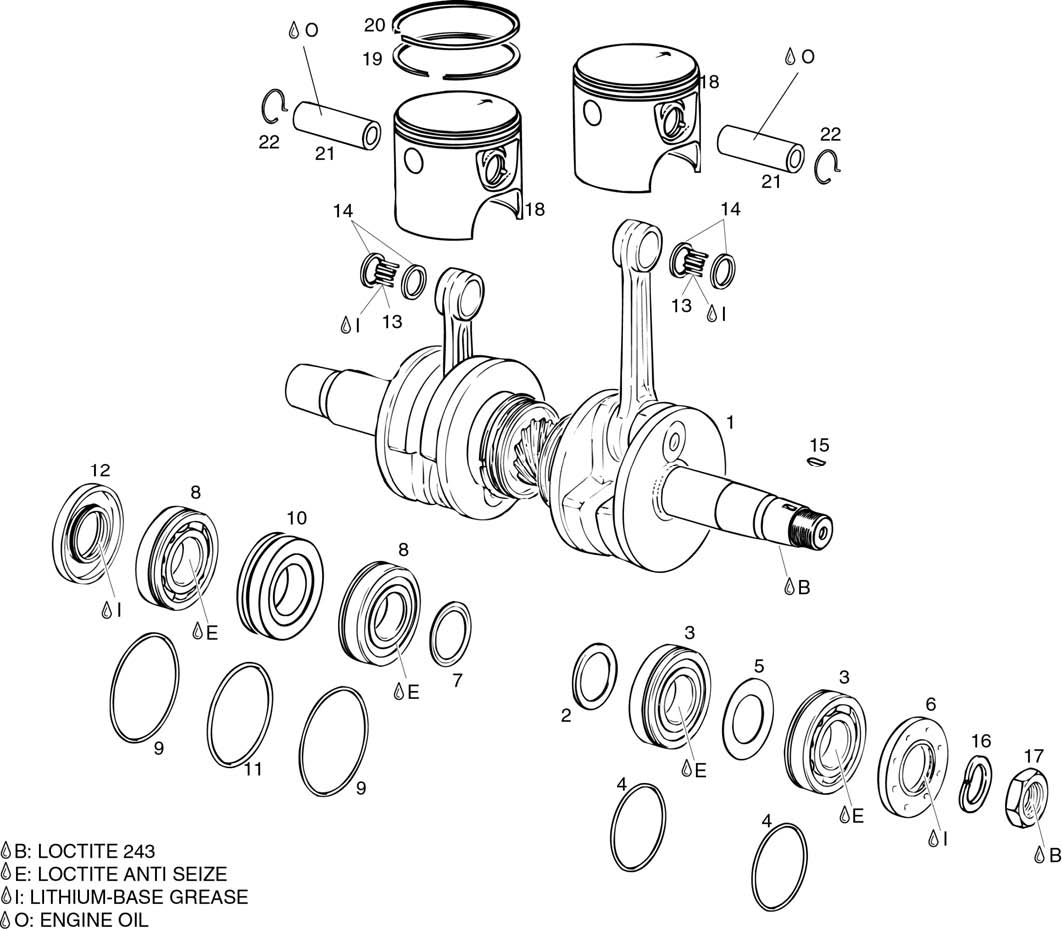

fig. 72-20-00-2
CRANKSHAFT, BEARINGS, PISTON For ROTAX 582 UL
Click on Number to order Part
| Fig. | Part Number | Description | Qty | Unit/Price | Add to Cart |
|---|---|---|---|---|---|
| 1-15 | 887051 | Crankshaft Assy. 582 | 1 | USD 1519.44 | + |
| 2 | 827441 | Spacer Ring 30,5/42/2 | 1 | USD 11.74 | + |
| 3 | 832208 | B. Bearing 6206 N Tvh, 30-62-16 | 2 | USD 104.92 | + |
| 4 | 830355 | O-ring 49,2-1,8 | 2 | USD 6.07 | + |
| 5 | 827715 | Stop Shim 30,4/51/1 | 1 | USD 3.65 | + |
| 6 | 830748 | Oil Seal 30x62x7/7,5 | 1 | USD 39.57 | + |
| 7 | 827760 | Distance Ring 35,5/47/2 | 1 | USD 7.76 | + |
| 8 | 632741 | B. Bearing 6207n Tnh C3 35-72-17 | 2 | USD 87.49 | + |
| 9 | 250165 | O-ring 64-2 | 2 | USD 5.86 | + |
| 10 | 830293 | 1 | USD | + | |
| 11 | 830370 | O-ring 63-2,5 | 1 | USD 7.67 | + |
| 12 | 831950 | Oil Seal 35x72x7/8,5 | 1 | USD 42.48 | + |
| 13-14 | 832320 | Cagel. Needle Bearing 18x22x23 | 2 | USD 60.39 | + |
| 14 | 827465 | Thrust Washer 18/21,7/2,5 | 4 | USD 25.49 | + |
| 15 | 246055 | Woodruff Key 3x3,7 Din 6888 | 1 | USD 4.1 | + |
| 16 | 945759 | Lock Washer 22 | 1 | USD 1.94 | + |
| 17 | 842239 | Hex. Nut M22x1,5 | 1 | USD 14.11 | + |
| 18-20 | 888590 | 2ab | USD | + | |
| 18-20 | 888591 | 2ac | USD | + | |
| 18-20 | 888592 | 2ad | USD | + | |
| 19e | 215200 | Rectangular Ring 76,00 Mm | 2e | USD 63.14 | + |
| 19f | 215201 | Rectangular Ring 76,25 Mm | 2f | USD 70.74 | + |
| 19g | 215202 | Rectangular Ring 76,5 Mm | 2g | USD 70.74 | + |
| 20e | 915820 | Semi-trapez Ring 76,0 Mm | 2e | USD 97.3 | + |
| 20f | 915821 | Semi-trapez Ring 76,25 Mm | 2f | USD 99.42 | + |
| 20g | 915822 | Semi-trapez Ring 76,5 Mm | 2g | USD 99.42 | + |
| 21 | 916136 | Piston Pin 18x11x53,7 | 2 | USD 51.92 | + |
| 22 | 845540 | Mono Hook Circlip | 4hi | USD 2.17 | + |
